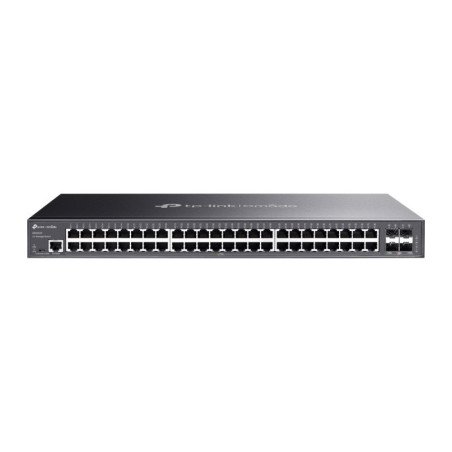

SWITCH SG3452X 48 + 4 10G SFP+ L2+ GIGABIT TP-LINK OMADA

CARACTERÍSTICAS DE HARDWARE

Interfaz 48× 10/100/1000 Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)

4× 10G SFP+ Slots

1× RJ45 Console Port

1× Micro-USB Console Port

Cantidad de Ventiladores Fanless

Bloqueo de Seguridad Físico ?

Fuente de Alimentación 100-240 V AC~50/60 Hz

Dimensiones 17.3×8.7×1.7 in (440×220×44 mm)

Montaje Rack Mountable

Consumo de Potencia Máximo 32.72 W (110V/60Hz)

Disipación máxima de calor 111.65 BTU/h (110 V/60 Hz)

RENDIMIENTO

Capacidad de Conmutación 176 Gbps

Tasa de Reenvío de Paquetes 130.94 Mpps

Tabla de Direcciones MAC 16 K

Memoria del Buffer de Paquete 12 Mbit

Jumbo Frame 9 KB

CARACTERÍSTICAS DE SOFTWARE

Calidad de Servicio 8 priority queues

802.1p CoS/DSCP priority

Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR

Bandwidth Control: Port/Flow-based Rating Limiting

Smoother Performance

Action for Flows: QoS remark (802.1P Remark, DSCP Remark)

Características L2 y L2+ 128 IP Interfaces: Support IPv4/IPv6 Interface

Static Routing: 48 IPv4/IPv6 Static Routes

Static ARP: 128 static entries

512 ARP Entries

Proxy ARP

Gratuitous ARP

DHCP Server

DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay

DHCP L2 Relay

Link Aggregation

Spanning Tree Protocol

Loopback Detection

802.3x Flow Control

Mirroring

Multicast L2 Supports 1000 (IPv4, IPv6) IGMP groups

IGMP Snooping

IGMP Authentication

Multicast VLAN Registration (MVR)

MLD Snooping

Multicast Filtering: 256 profiles and 16 entries per profile

Características Avanzadas Automatic Device Discovery

Batch Configuration

Batch Firmware Upgrading

Intelligent Network Monitoring

Abnormal Event Warnings

Unified Configuration

Reboot Schedule

ISP Features*:

L2PT (Layer 2 Protocol Tunneling)

Device Link Detect Protocol (DLDP)

PPPoE ID Insertion

ERPS

802.3ah Ethernet Link OAM

DDM

sFlow

VLAN VLAN Group: Max 4K VLAN Groups

802.1q Tagged VLAN

MAC VLAN: 30 Entries

Protocol VLAN: Protocol Template 16, Protocol VLAN 16

Private VLAN

GVRP

VLAN VPN: VLAN Mapping, VLAN Replace

Voice VLAN

Lista de Control de Acceso Time-based ACL

MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type

IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS

Combined ACL

Packet Content ACL

IPv6 ACL

Policy: Mirroring, Redirect, Rate Limit, QoS Remark

ACL apply to Port/VLAN

Seguridad IP-MAC-Port Binding

- 512 Entries

- DHCP Snooping

- ARP Inspection

- IPv4 Source Guard: 100 Entries

IPv6-MAC-Port Binding

- 512 Entries

- DHCPv6 Snooping

- ND Detection

- ND Snooping

- IPv6 Source Guard: 100 Entries

DoS Defend

DHCP Filter

Static/Dynamic Port Security: Up to 64 MAC addresses per port

Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode

802.1X

- Port-based authentication

- Mac-base authentication

- VLAN Assignment

- MAB

- Guest VLAN

- Radius authentication and accountability support

AAA (including TACACS+)

Port Isolation

Secure web management through HTTPS with SSLv3/TLS 1.2

Secure Command Line Interface (CLI) management with SSHv1/SSHv2

IP/Port/MAC-based access control

IPv6 IPv6 Dual IPv4/IPv6

Multicast Listener Discovery (MLD) Snooping

IPv6 ACL

IPv6 Interface

Static IPv6 Routing

IPv6 neighbor discovery (ND)

Path maximum transmission unit (MTU) discovery

Internet Control Message Protocol (ICMP) version 6

TCPv6/UDPv6

IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP

MIBs MIB II (RFC1213)

Interface MIB (RFC2233)

Ethernet Interface MIB (RFC1643)

Bridge MIB (RFC1493)

P/Q-Bridge MIB (RFC2674)

RMON MIB (RFC2819)

RMON2 MIB (RFC2021)

Radius Accounting Client MIB (RFC2620)

Radius Authentication Client MIB (RFC2618)

Remote Ping, Traceroute MIB (RFC2925)

Support TP-Link private MIB

GESTIÓN

Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Gestión Centralizada Omada Cloud-Based Controller

Omada Hardware Controller

Omada Software Controller

Acceso a la nube Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Aprovisionamiento sin contacto Yes. Requiring the use of Omada Cloud-Based Controller.

Funciones de gestión Web-based GUI

Command Line Interface (CLI) through the console port, telnet

SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups)

SDM Template

DHCP/BOOTP Client

802.1ab LLDP/LLDP-MED

DHCP AutoInstall

Dual Image, Dual Configuration

CPU Monitoring

Cable Diagnostics

EEE

Password Recovery

SNTP

System Log

Otros

Certificaciones CE, FCC, RoHS

Contenido del Paquete SG3452X Switch

Power Cord

Quick Installation Guide

Rackmount Kit

Rubber Feet

Requisitos del sistema Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Factores Ambientales Operating Temperature: 045 ? (32113 ?);

Storage Temperature: -4070 ? (-40158 ?)

Operating Humidity: 1090% RH non-condensing

Storage Humidity: 590% RH non-condensing
