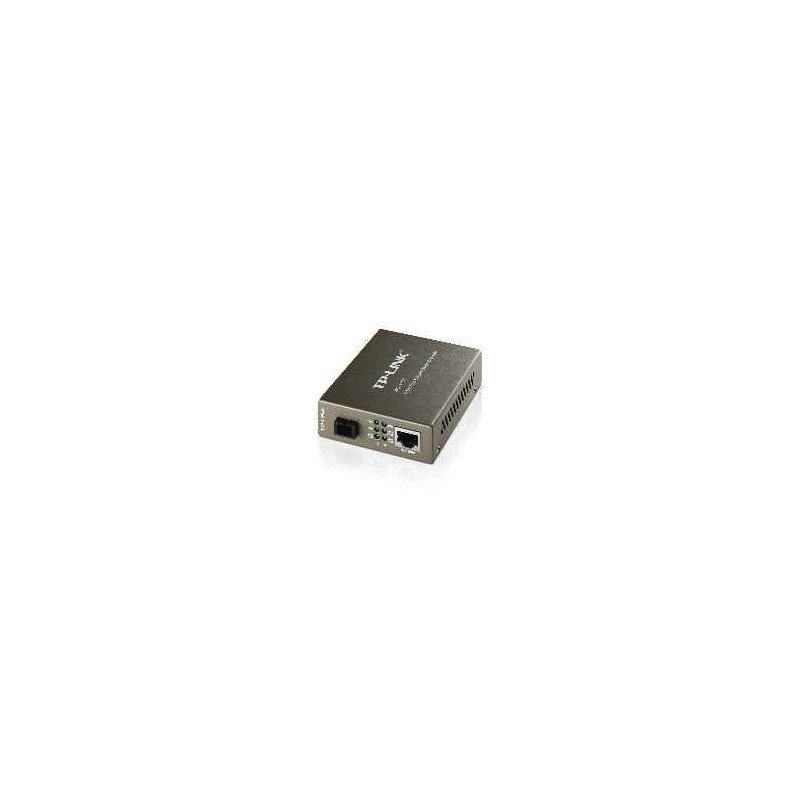

MEDIA CONVERTER TPLINK MC110CS 10/100 SINGLE MODE

MÓDULO Y CONVERTIDOR DE MEDIOS

Estándares y protocolos IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Función básica Half/Full-Duplex transfer mode for FX port

  Full Duplex Flow Control (IEEE 802.3x)

  Half Duplex Flow Control (Backpressure)

  Extends fiber distance up to 20km

  Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely

Puertos 1 100M SC/UPC port

  1 100M RJ45 port (Auto MDI/MDIX)

Longitud de onda 1310nm

Medios de red 10BASE-T UTP category 3, 4, 5 cable (maximum 100m)

  EIA/TIA-568 100? STP (maximum 100m)

Medios de red 100BASE-T UTP category 5, 5e cable (maximum 100m)

  EIA/TIA-568 100? STP (maximum 100m)

Medios de red 100BASE-FX Single-mode Fiber

Indicadores LED PWR, FDX/Col, Link/Act, SPD

Dimensiones (Al x An x Pr) 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)

Fuente de alimentación External power supply

Consumo máximo de energía 1.52W

Seguridad y emisión FCC, CE, RoHS

Package Contents Media Converter MC110CS

  Power Adapter

  Installation Guide

Ambiente Operating Temperature: 0?~40? (32?~104?)

  Storage Temperature: -40?~70? (-40?~158?)

  Operating Humidity: 10%~90% non-condensing

  Storage Humidity: 5%~90% non-condensing
