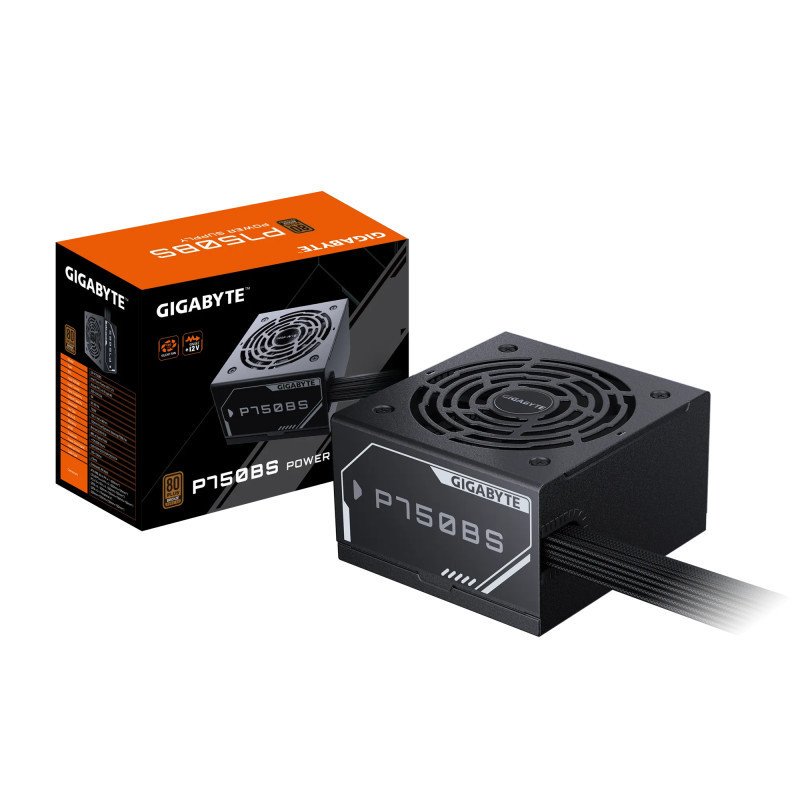

FUENTE 750W GIGABYTE GP-P750BS 80 PLUS BRONZE

Model

GP-P750BS

Type

Intel Form Factor ATX 12V

PFC

Active PFC (>0.9 typical)

Input Voltage

200-240 Vac

Input Current

6 A

Input Frequency

60-50 Hz

Output Capacity

750W

Dimensions

150 x 140 x 86 mm

Fan Type

120mm Fluid Dynamic Bearing (FDB) Fan

80 PLUS

Bronze (230V EU)

Efficiency

88% at typical load

MTBF

>100,000 hours

Protections

OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal

100-150ms

Hold Up Time

>16ms

Cable Type

Embossed, All black

Connectors

ATX/MB 20+4 Pin x 1 : 600mm*1

CPU/EPS 4+4 Pin x 2 : 600mm+150mm*1

PCI-E 6+2 Pin x 4 : 500mm+150mm*2

SATA x 4 : 500mm+150mm+150mm+150mm*1

SATA x 3 + Peripheral x1 : 500mm+150mm+150mm+150mm*1
